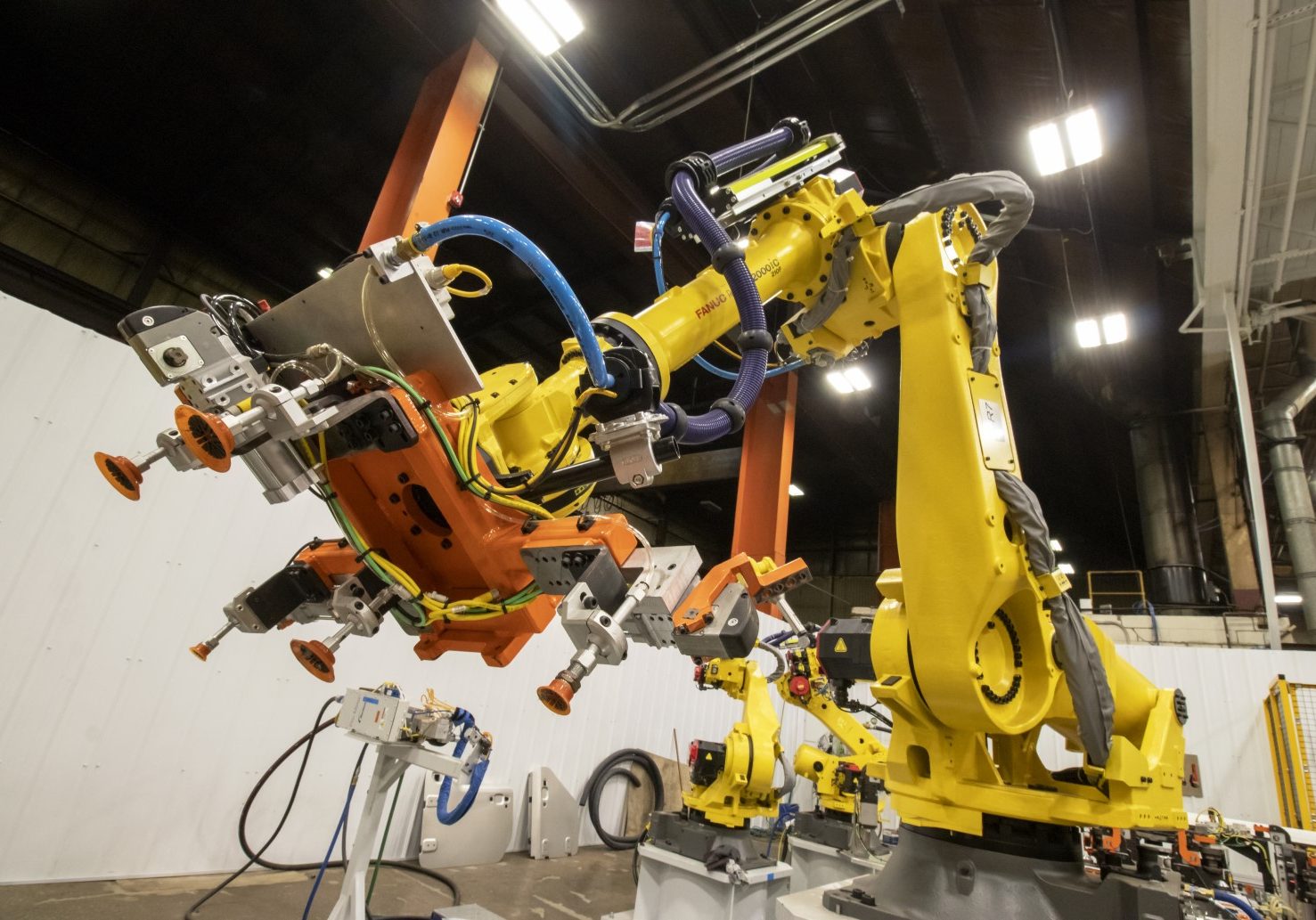

Flexible Assembly
With assistance from our Automation Group, we can create flexible assembly solutions to pair with stamping.
Capable Stamping
Our powerful and capable press lines means we can run double-unattached, bodysides, and more.

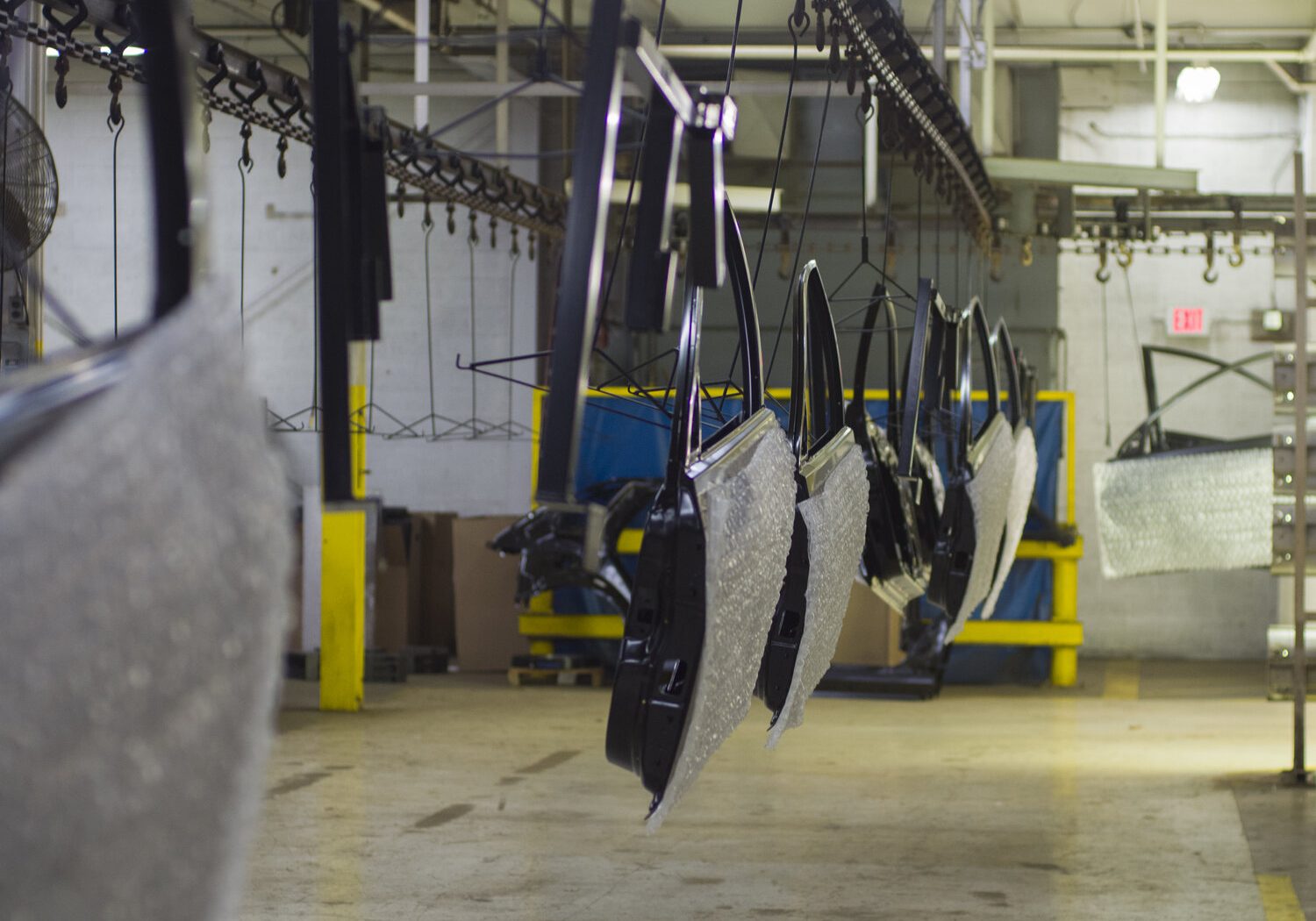

Pack and Ship
Our Packaging and Warehousing departments enable us to stamp and ship E-Coated parts directly to you.
Equipment At This Location
A - Line
- Fully Automated Line
- (1) Macrodyne 1,500 Ton Hydraulic Draw Press
- (4) Clearing 800 Ton Mechanical PressesÂ
- 96" x 156"Â
B- Line
- Air ISI Press Extractors
- (1) Macrodyne 2,000 Ton Hydraulic Draw Press
- (4) Danly 1,000 Ton Mechanical Presses
- 96' x 180'
C- Line
- Air ISI Press Extractors
- (1) Clearing 600 Ton Mechanical Press
- (3) Bliss 600 Ton Mechanical Press
- (1) Danly 300 Ton Mechanical Press
- 84' x 144'Â
Hem PressÂ
- Assembly Hydraulic HEM Press
- (1) Clearing 400 Ton Hydraulic Press
- 110' x 102.5'
S-Line
- Fully Automated Press Line
- (1) Danly 1000 Mechanical Draw Press
- (3) Danly 1000 Mechanical Presses
- (2) Danly 800 Mechanical PressesÂ
- 72" x 120"

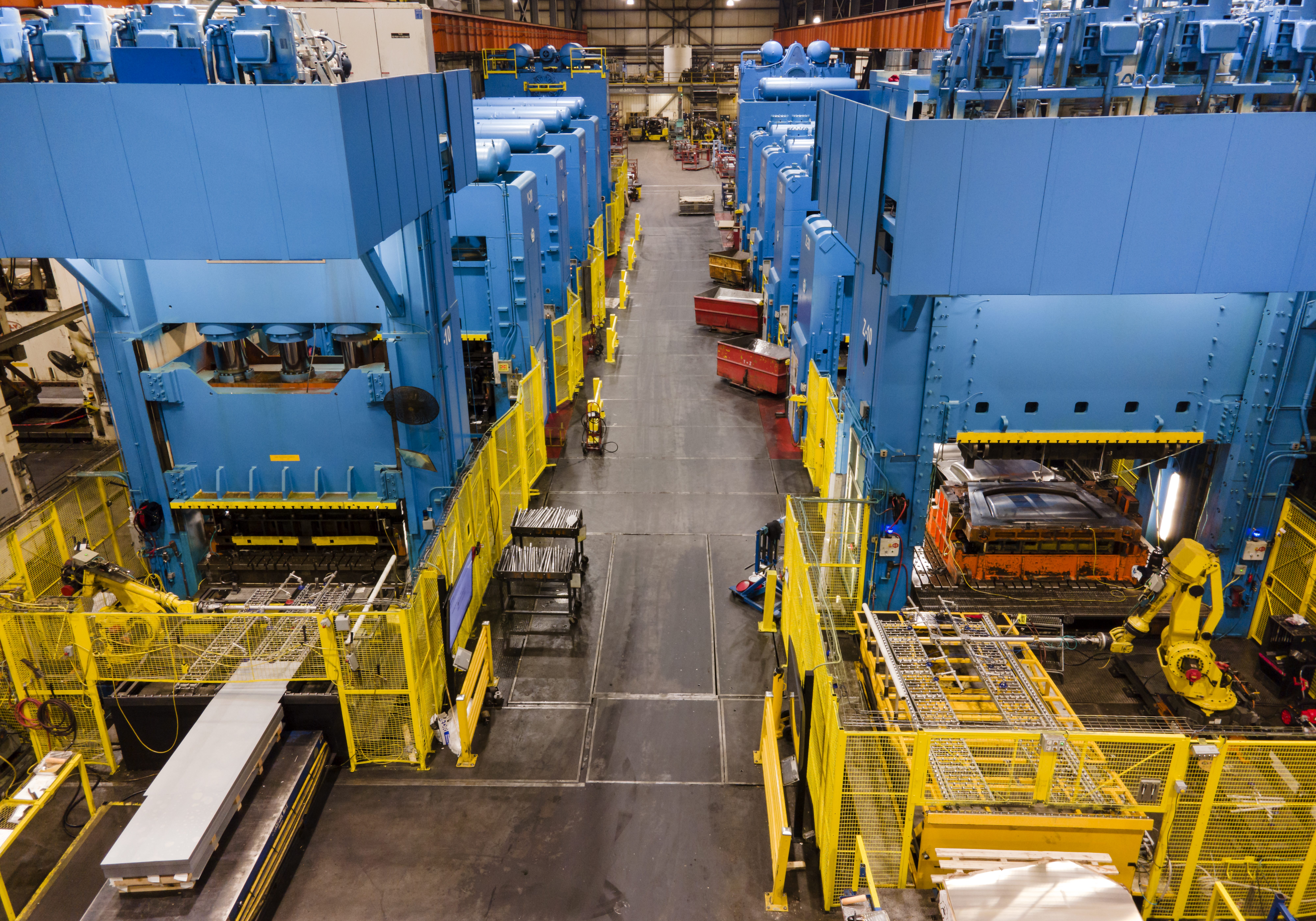

Y-Line
- Fully Automated Press LineÂ
- (1) Macrodyne 2000 Ton Hydraulic Draw Press Line
- (4) Danly 1000 Mechanical Presses
- (1) Clearing 800 Mechanical Press
- (1) Clearing 350 Ton Mechanical Press
- 108" x 144"
Z- Line
- Schuller Press Extractors
- (1) Macrodyne Double-Action 1600 Ton Hydraulic Draw Press
- (5) Danly 1000 Ton Mechanical PressesÂ
- (1) Clearing 800 Ton Mechanical Press
- 96" x 180"
3 -TruLaser Cell 8030 (L60)Â
LC001, LC002, & LC003
- X = 3000 mm, Y = 2100 mm, Z = 650 mm
- B = ± 135°, C = n x 360°
- Including dynamic level 3
- 30 m laser light cable
- 21.5" operating panel with Touchpoint HMI
| EQUIPMENT I.D. | PROCESS CONFIGURATION | DESCRIPTION | TABLE TYPE | WELD GUN CAPABILITY | EQUIPMENT MANUFACTURER | |
| ROBOTIC | MANUAL | |||||
| CFRM1 | STUD/ NUT WELDING | Â | X | NEST | MANUAL PED WELD | MEDAR |
| HEM1 | DIE HEM | X | Â | FIXTURED | DIE HEMMING | FANUC |
| RH02 | ROLLER HEM | X | Â | FIXED | ROLLER HEMMING | FANUC |
| PED50 | STUD/ NUT WELDING | Â | X | NEST | MANUAL PED WELD | Â |
| PED90 | STUD/ NUT WELDING | Â | X | NEST | MANUAL PED WELD | Â |
| PW120 | STUD/ NUT WELDING | Â | X | NEST | MANUAL PED WELD | Â |
| RA-2 | MASTIC/ ADHESIVE | X | Â | UNIVERSAL | ROBOTIC MASTIC | FANUC/ SEALANT EQUIP |
| RA-3 | MASTIC/ ADHESIVE | X | Â | UNIVERSAL | ROBOTIC MASTIC | FANUC/ SEALANT EQUIP |
| RH-02 | ROLLER HEM | X | Â | ANVIL | ROLLER HEMMING | FANUC |
| RIVST | SPR (SELF PIERCING RIVET) | X | Â | NEST/7TH AXIS | ROBOTIC SPR | FANUC/ EMHART |
| RS-1 | SPOT WELDING | X | Â | 3 POSITION | 3 ROBOTIC SPOT | FANUC/ WTC |
| RS-3 | SPOT WELDING | X | Â | 3 POSITION | 3 ROBOTIC SPOT | FANUC/ WTC |
| RS-21 | FLEXIBLE ASSEMBLY CELL | X | Â | NEST | MATERIAL HANDELER | FANUC/ WTC |
| WS10 | SPOT WELDING | Â | X | NEST | 1 GUN MANUAL | FANUC/ WTC |
| WS16 | SPOT WELDING | Â | X | NEST | 3 GUN MANUAL | Â |
| WS21 | SPOT WELDING | Â | X | Â | 1 GUN MANUAL | MEDAR |
| JLWLD | SPOT WELDING | X | Â | 7TH AXIS | 5 | FANUC/ ARO/ NORDSON |
| JLHEM | ROLLER HE/ SPOT WELDING | X | Â | 7TH AXIS | 2 | FANUC/ ARO/ NORSON |
| EQUIPMENT I.D. | PROCESS CONFIGURATION | DESCRIPTION | TABLE TYPE | WELD GUN CAPABILITY | EQUIPMENT MANUFACTURER | |
| ROBOTIC | MANUAL | |||||
| PED10 | STUD/ NUT WELDING | Â | X | FIXTURED | MANUAL PED WELD | GE SCHMIDT |
| PED10 | STUD/ NUT WELDING | Â | X | FIXTURED | MANUAL PED WELD | GE SCHMIDT |
| PED10 | STUD/ NUT WELDING | Â | X | NA | MANUAL PED WELD | Â |
| RA4 | MASTIC/ ADHESIVE | X | Â | UNIVERSAL | ROBOTIC MASTIC | FANUC/nordson |
| RA11 | MASTIC/ ADHESIVE | X | Â | UNIVERSAL | ROBOTIC MASTIC | FANUC/nordson |
| RH1 | ROLLER HEM | X | Â | ANVIL | 2)ROBOTIC HEMMING | FANUCÂ |
| RH3 | ROLLER HEM | X | Â | ANVIL | 2)ROBOTIC HEMMING | FANUCÂ |
| RS2 | SPOT WELDING | X | Â | 3 POSITION | 3 ROBOTIC SPOT | FANUC/ WTC |
| RSTOG | TOX CLINCH | X | Â | NEST/7TH AXIS | TOX CLINCH GUN | FANUC |
| WS15 | SPOT WELDING | Â | X | NEST | 3 GUN MANUAL | MEDAR |
| WS17 | SPOT WELDING | Â | X | NEST | 3 GUN MANUAL | MEDAR |
| WS18 | SPOT WELDING | Â | X | NEST | 2 GUN MANUAL | MEDAR |
| WS19 | SPOT WELDING | Â | X | NEST | 1 GUN MANUAL | MEDAR |
| WS22 | SPOT WELDING | Â | X | NEST | 2 GUN MANUAL | MEDAR |
| WS27 | SPOT WELDING | Â | X | NEST | 3 GUN MANUAL | MEDAR |
| RS19 | SPOT WELDING | X | Â | GENESIS(2) | 2 ROBOTIC SPOT | FANUC/ WTC |
| RS20 | SPOT WELDING | X | Â | GENESIS(2) | 2 ROBOTIC SPOT | FANUC/ WTC |
| EQUIPMENT I.D. | PROCESS CONFIGURATION | DESCRIPTION | TABLE TYPE | WELD GUN CAPABILITY | EQUIPMENT MANUFACTURER | |
| ROBOTIC | MANUAL | |||||
| MHEM5 | Â | X | X | NA | MANUAL HEMMING | ABB |
| RA1 | MASTIC/ ADHESIVE | X | Â | UNIVERSAL | ROBOTIC MASTIC | FANUC/SEALANTÂ |
| RA5 | MASTIC/ ADHESIVE | X | Â | UNIVERSAL | ROBOTIC MASTIC | FANUC/SCA |
| RA9 | MASTIC/ ADHESIVE | X | Â | NEST | ROBOTIC MASTIC | FANUC/ SHUKAR |
| RIVS2 | SPR (SELF PIERCING RIVET) | X | Â | NEST/7TH AXIS | ROBOTIC SPR | FANUC / EMHART |
| RS7 | MIG WELDING | X | Â | TURN TABLE (2) | ROBOTIC MIG WELDING | FANUC/ MILLER |
| RS10 | ADHESIVE | X | Â | FIXTURED | ROBOTIC MASTIC | ABB |
| RS17 | SPOT WELDING | X | Â | NEST/7TH AXIS | 1 ROBOTIC SPOT | FANUC |
| RS18 | SPOT WELDING | X | Â | NEST/7TH AXIS | 1 ROBOTIC SPOT | FANUC |
| RS22 | SPOT WELDING | X | Â | NEST/7TH AXIS | 1 ROBOTIC SPOT | FANUC |
| PED70 | NUT WELDING | Â | X | NA | Â | DENGENSHA/ BF ENTRON |
| PED80 | NUT WELDING | Â | X | NA | Â | AUTOMATRIX/ BF ENTRON |
